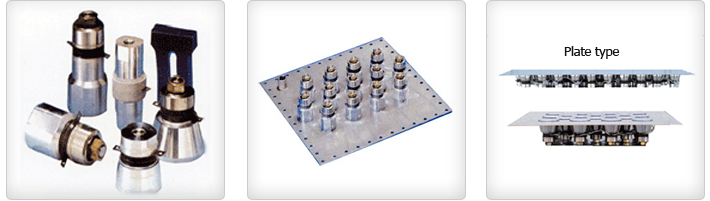

- Vibrator
- Characteristics
- - The output of a vibrator which uses a B.L.T. type oscillator is determined according to the size and shape of water storage
for the object to be cleaned. Custom manufacturing of a large-sized vibrator in accordance with manufacturing
requirements is also available. - - Set the detergent range to over 100mm from the emitting surface of the oscillator.
- - Attention : Do not operate the vibrator when no detergent is charged. (The oscillator may be damaged)
| Model | Out Power(w) | Frequency(KHz) | Dimension(m/m) | Generator |
|---|---|---|---|---|
| HS-20BK | 200 | 20~220 | 120x150x110(H) | HS-200K |
| HS-40BK | 400 | 20~220 | 260x180x110(H) | HS-400K |
| HS-60BK | 600 | 20~220 | 310x230x110(H) | HS-600K |
| HS-100BK | 1000 | 20~220 | 380x250x110(H) | HS-1000K |
| HS-120BK | 1200 | 20~220 | 420x300x110(H) | HS-1200K |
| HS-150BK | 1500 | 20~220 | 460x400x110(H) | HS-1500K |
