Characteristics

The auto ultrasonic washer is a washing equipment that safely and precisely cleans all objects by applying various efficient automation methods to the operation principle of the multi forming washer. Automation methods include the following.

1. Chain conveyor method
2. Mesh belt method
3. Rotary conveyor method
4. Pneumatic and hydraulic application method
5. Robotization method

The hoist method can be added, depending on the weight and operation type. Hanshin Tech is renowned for its product efficiency, precision, and safe cleaning. We guarantee that our products will enhance the economic feasibility of your manufacturing process as detergent loss prevention measures are applied to all our products.

• Turntable washer,
  Mesh-Belt,
  Chain Conveyor Cleaner
• Automatic Box,
  LCD Optical Lens,
  Dedicated water soluble P.C.B.
• Auto Parts Dishwasher,
  Spray Cleaner,
  Rotary Washer

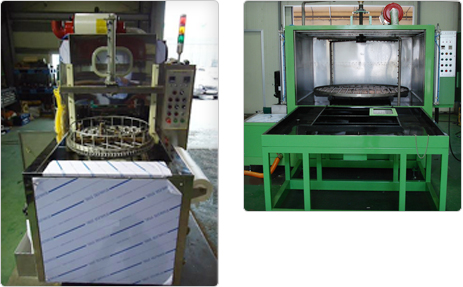

Turn Table

•
• It cleans any object without leaving any blind spots by adopting a revolving cleaning method.
  It is easy to use and ensures effective operation as the entrance and exit are located at the same spot.

Mesh-Belt

•
• This is an auto spray washing and drying machine which uses a mesh belt to apply an alkali cleaning solution. It is designed to be suitable for unmanned automation and continuous work process as the conveyor can be linked to the transport line.

Chain conveyor

•
• This automatic washer is designed to automatically transport and wash a large volume of objects to be cleaned by using the operation principle of a multi forming washer. The washing process from cleansing to drying is completely automated, and it prevents toxic solutions from being leaked by sealing the equipment during the scheduled work or operation. It also ensures safety by providing various safety devices.

Cleaning Process

Process		Cleanser	Temp	Incidental Facilities
1	Immersion Sump	Alkali / Solvent	60℃	Heater, Thermocontroller Filter
2	Ultrasonic Sump	Alkali / Solvent	60℃	Transducer(B.L.T) Heater Thermocontroller
3	Ultrasonic Sump	Alkali / Solvent	60℃	Transducer(B.L.T) Heater Thermocontroller
4	Rinse Sump	Alkali / Solvent	20℃	Shower Solenoid Valve
5	Vapor Sump	Alkali / Solvent	85℃~120℃	Heater, Water Separator, Level Alarm, Thermocontroller

Specification

Cleanser Volume	580ℓ Approx
Electric Power	220V X 3Φ 60Hz
Refrigerator	5RT (Option)
Transducer Unit	1200W B.L.T
Solvent Supply Pump	1HP (SUS 304)
Filter system	Filter(100) Motor Pump 1/4HP (SUS 304)
